INFILAM / HVAC FABRICATION

Design the plenum.
Prepare the factory.

InfiLAM Plenum Designer connects equipment openings, outlet geometry, manufacturing drawings, panel nesting and machine-ready production information in one Windows application.

Request access See the workflow

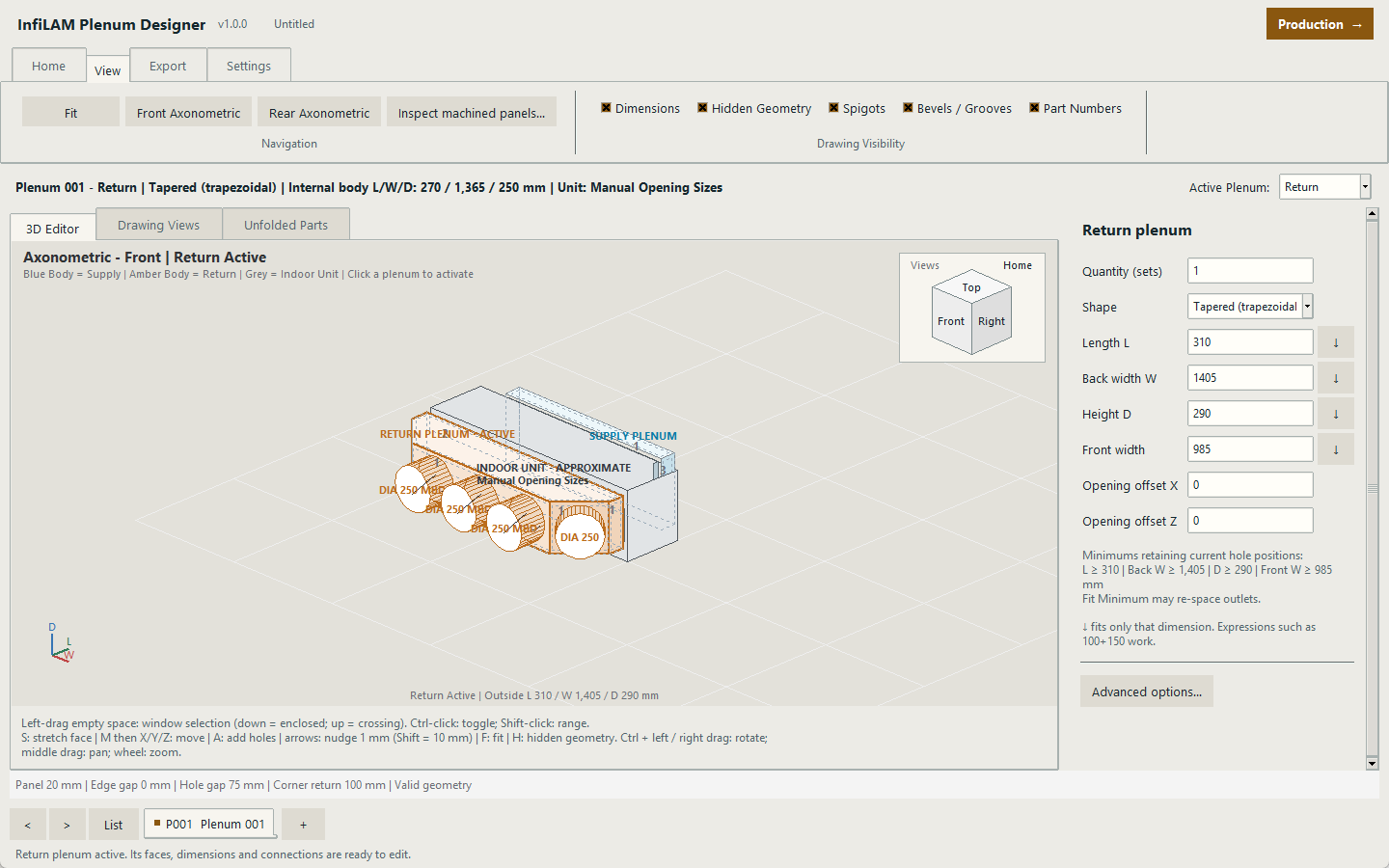

Current InfiLAM Plenum Designer workspace showing a tapered return plenum

DESIGN / REVIEW / RELEASE

Model

Create rectangular, triangular and tapered supply or return plenums around real unit openings and outlet requirements.

Document

Produce client drawings, factory drawings, unfolded panels, labels and full-size DXF geometry from the same job data.

Produce

Move approved plenums into a dedicated production module for true-outline nesting, off-cut control and machine-ready output.

ONE PRODUCTION RECORD

From equipment opening to nested sheet.

Jobs stay grouped by order number, with named plenums, quantities and production status carried forward. Fabricators can review machining information, opening sizes and panel geometry before material is committed.

Supply and return plenums in one project
Per-hole spigots and manual blade dampers
Client and factory PDF sets
2D panel and 3D assembly DXF output
Panel nesting, retained off-cuts and machine-ready files

PRODUCTION CAPABILITIES

Release approved geometry directly to fabrication.

Nesting, machine packages and labels remain connected to the same approved plenum and quantity data.

01 / NEST

Material-aware panel nesting

True panel outlines are arranged across full sheets or retained off-cuts. The optimiser can rotate parts, use otherwise empty spaces and search longer for tighter layouts.

Multi-part layout optimisation
Rotation and placement search
Full-sheet and retained off-cut options
Clear material-usage reporting

02 / MACHINE

Traceable machine export

Every finalised production sheet receives its own nesting drawing, layered DXF and machine-ready file generated from the approved layout.

Output generated from approved geometry
Operations grouped for efficient production
Consistent files for each production sheet
Numbering linked to production records

03 / IDENTIFY

Editable labels, ready to print

Create paired plenum labels directly from the job data, edit the text when required, preview the result and print through the Windows printer driver.

Supply and return identification
Order, sales and plenum numbers
Licence-managed organisation branding
Direct printing from the application

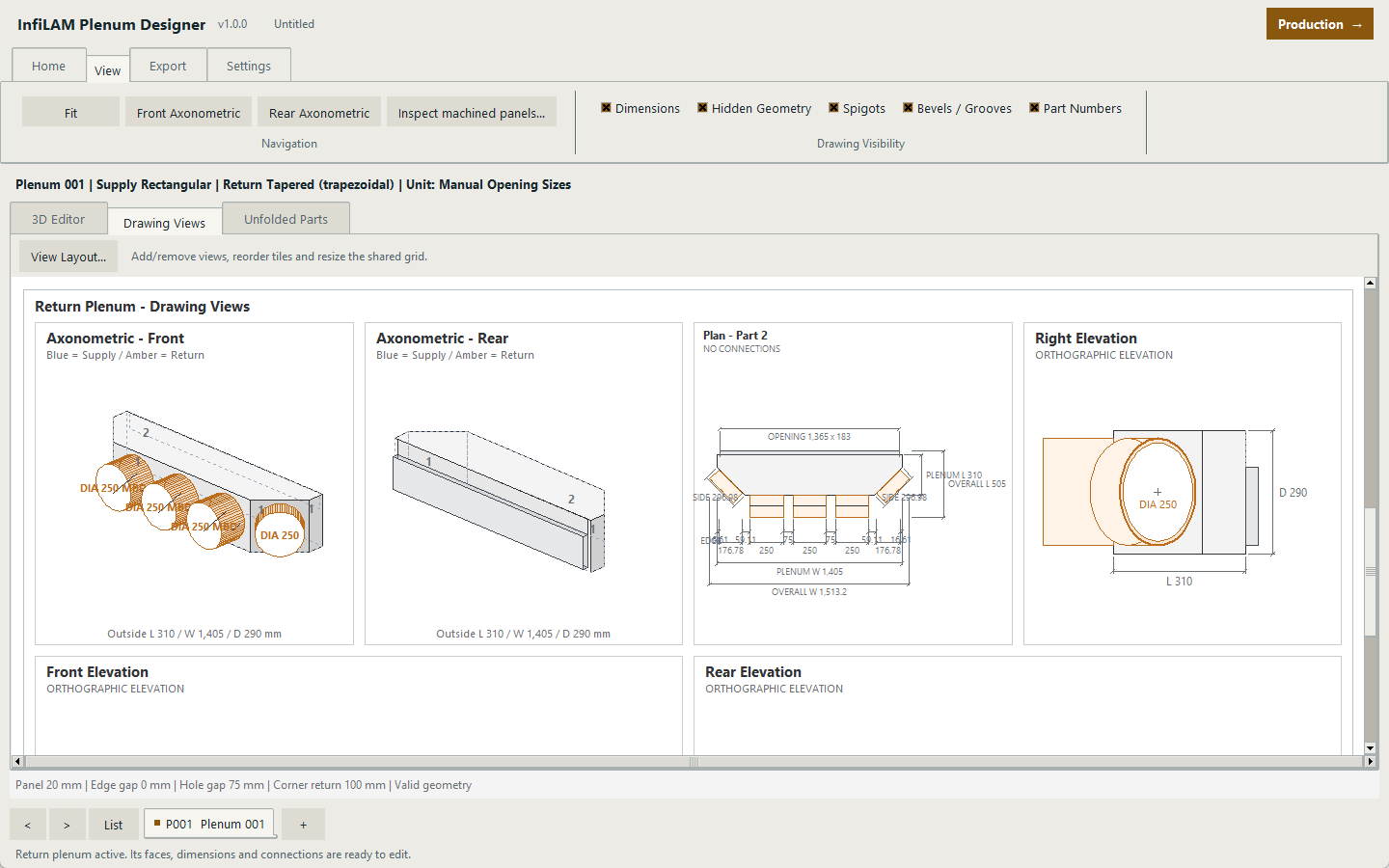

Plenum Designer model-derived drawing views — **Model-derived views**Review supply and return plenums, openings and dimensions from one controlled job model.

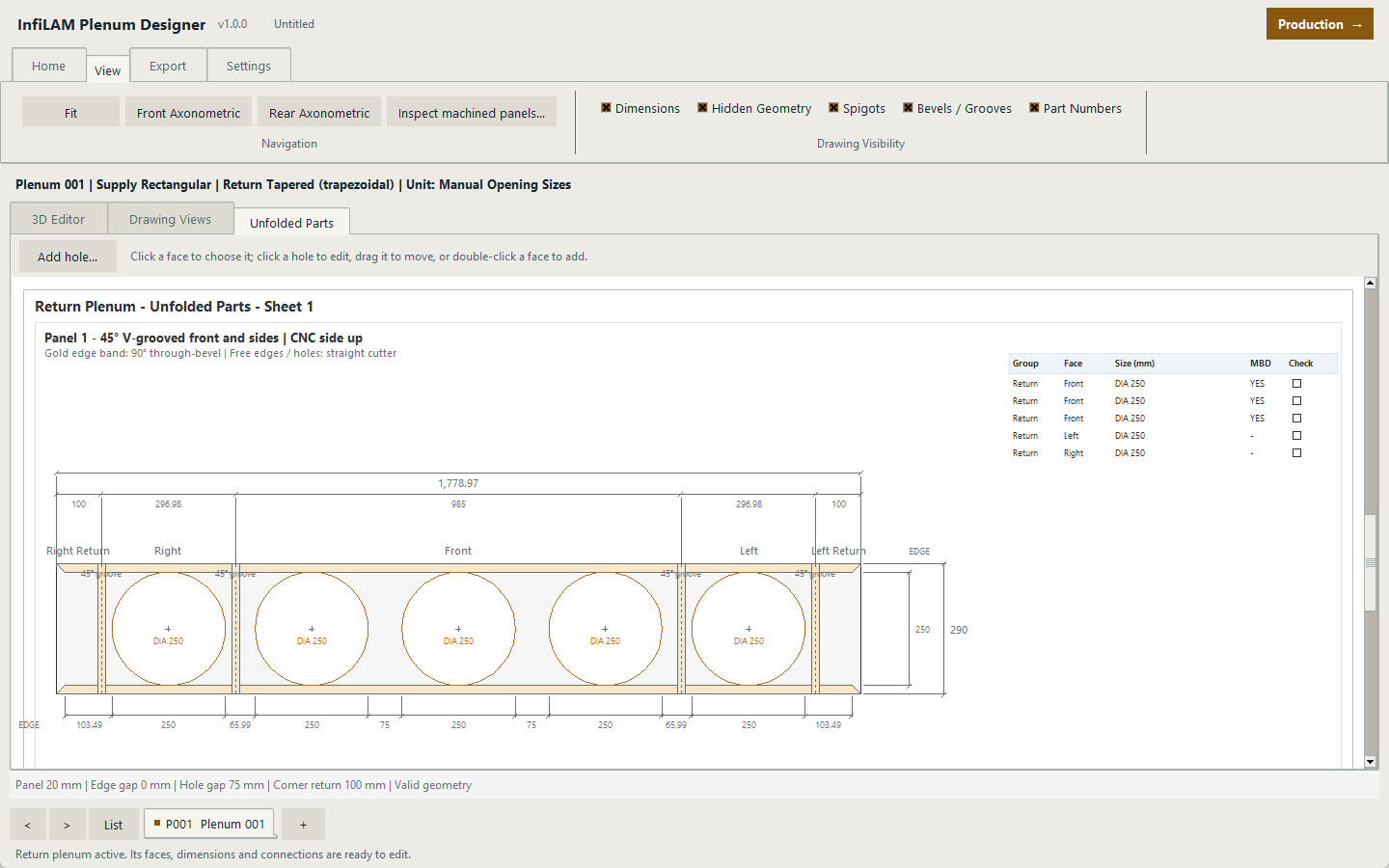

Unfolded manufacturing panel with machining details — **Manufacturing detail**Inspect full-size panels, outlet cut-outs and clearly identified machining information before production.

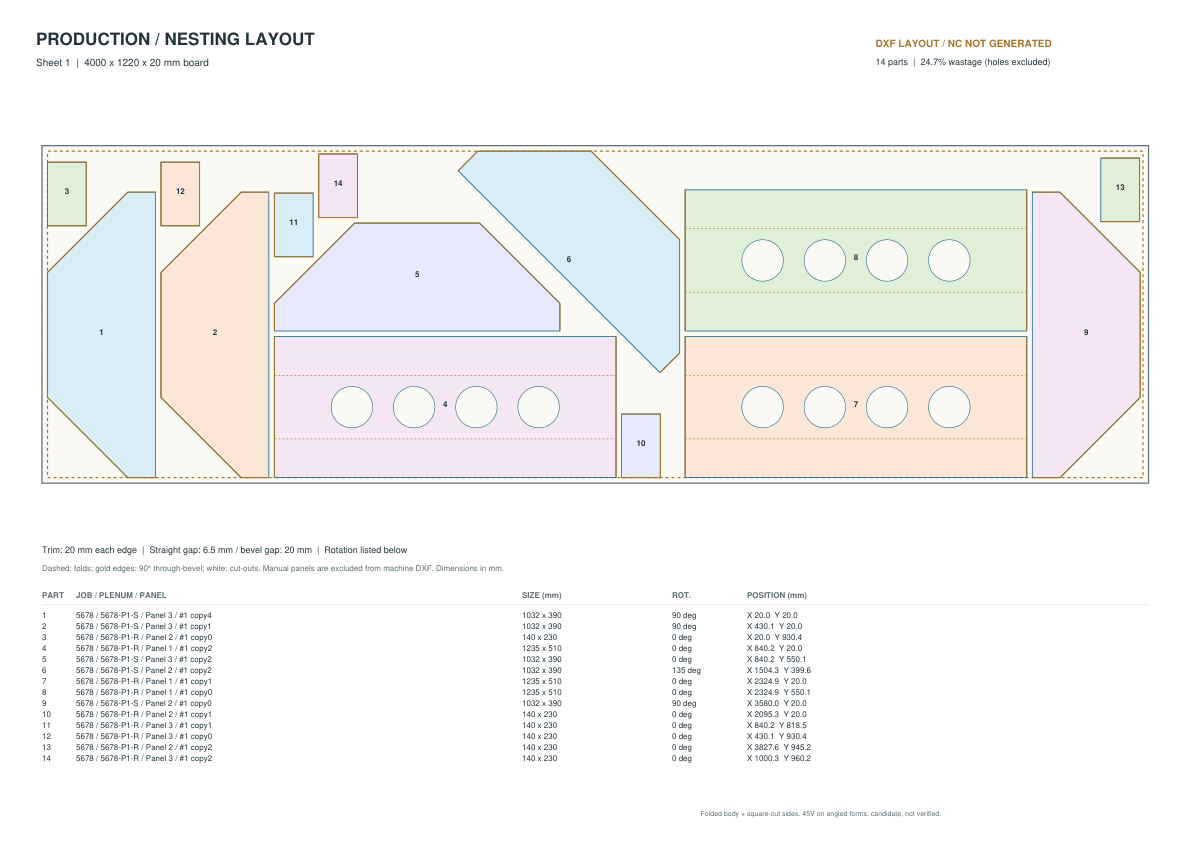

Dense multi-part panel nesting across a complete production sheet — **Optimised sheet nesting**Fill the available material with true panel outlines while respecting manufacturing requirements.

Generic two-up supply and return plenum labels — **Automatic two-up labels**Edit, preview and directly print clear plenum identification from the approved job data.

CONTROLLED ACCESS

Request access for your organisation.

Tell us about your workflow and intended device count. InfiLAM reviews each request, configures organisation branding and device limits, then sends the approved installer link.

1Submit organisation details2InfiLAM reviews and approves access3Download and activate with the approved email

Design the plenum.Prepare the factory.
